A cable gland is a critical component in modern electrical systems, ensuring the safe, secure, and efficient routing of cables into electrical enclosures, junction boxes, and industrial equipment. By sealing and protecting the cable entry point, it prevents exposure to harsh environmental elements such as moisture, dust, and other contaminants, ensuring the longevity and reliability of your electrical infrastructure.
In this article, we will dive into the primary functions of cable glands, explore the types and applications, and provide practical insights into how to choose and maintain them. Understanding how to properly use a cable gland is essential for maintaining electrical safety and performance in various applications.

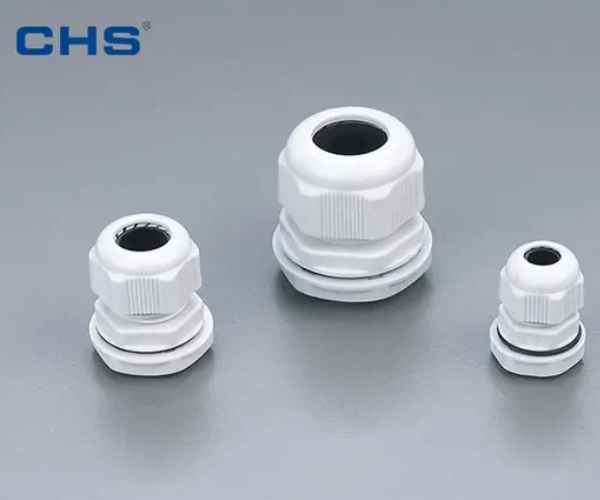

A cable gland, sometimes referred to as a cable connector or cable fitting, is a mechanical device used to secure and seal the entry of a cable into an electrical enclosure, equipment, or control panel. It ensures that the cable is tightly held in place, preventing it from slipping, being exposed to external elements, or becoming damaged due to environmental conditions.
The primary role of a cable gland is to provide strain relief for the cable, protect the electrical components from environmental contaminants, and sometimes to establish grounding connections to prevent electrical hazards.
Component | Description |
Gland Body | The casing that holds the other components and provides protection for the cable. |
Seal | A rubber or elastomeric component that seals the entry point of the cable. |
Nut | Used to secure the gland and tighten it onto the electrical enclosure. |
Washer | Distributes pressure evenly and helps maintain a secure seal. |
Locking Ring | Ensures the gland remains securely fixed in place, preventing loosening. |
The primary function of a cable gland is to provide mechanical support to the cable where it enters an electrical enclosure. It ensures that the cable does not experience undue strain, preventing it from being pulled out or damaged over time.
Strain relief is crucial for preventing the cable from being accidentally yanked or exposed to excessive tension, which could compromise its integrity and disrupt the electrical system. Without proper strain relief, cables may become loose, causing electrical short circuits or system malfunctions.
Function: Secures the cable firmly in place to prevent movement.
Benefit: Reduces stress and strain on the cable, ensuring it remains securely connected.
A cable gland provides a watertight and dustproof seal around the cable, offering essential protection against environmental factors. Whether in industrial settings, outdoor installations, or marine environments, the gland’s sealing properties prevent dust, moisture, and other contaminants from entering the electrical system.
This sealing functionality is particularly important in high-humidity or corrosive environments, such as factories, power plants, and offshore locations.
Sealing Types:
Protection Level | Description |
IP66 | Dust-tight, protected against heavy water jets. |
IP68 | Dust-tight, resistant to immersion in water up to 1.5 meters. |
IP69K | Full protection against dust and high-pressure water jets, commonly used in food industries. |
The cable gland ensures that these contaminants do not affect the electrical system, which could lead to damage or safety issues.
Some cable glands come equipped with grounding or earthing capabilities, providing an extra layer of electrical safety. The gland ensures that any electrical faults within the cable system are safely redirected to the ground, minimizing the risk of electrical shocks or fires.
This feature is especially important in systems where high-voltage cables are used, such as in substations or industrial machinery. Proper grounding prevents electric shocks, equipment damage, and reduces the likelihood of catastrophic failures.
Function: Provides a secure grounding path for electrical systems.
Benefit: Minimizes the risk of electrical hazards and improves overall safety.
There are several types of cable glands, each designed for specific applications and environmental requirements. The main differences between these glands lie in their materials, sealing abilities, and thread types.
Metric cable glands are the most commonly used type. They are designed with metric threads, making them suitable for a variety of global standards, especially in international applications.
Common Materials: Brass, stainless steel, nylon.
Applications: Industrial systems, power distribution, electrical enclosures.
These glands are widely available and provide a secure fit for cables of varying sizes, ensuring that the cable is properly sealed and protected.
The PG (Panzergewinde) system, typically used in Europe, is a different threading system than metric. PG cable glands are specifically designed to accommodate larger cable diameters and are often chosen for heavy-duty applications.
Common Materials: Plastic, brass.
Applications: Telecommunications, heavy machinery, and outdoor installations.

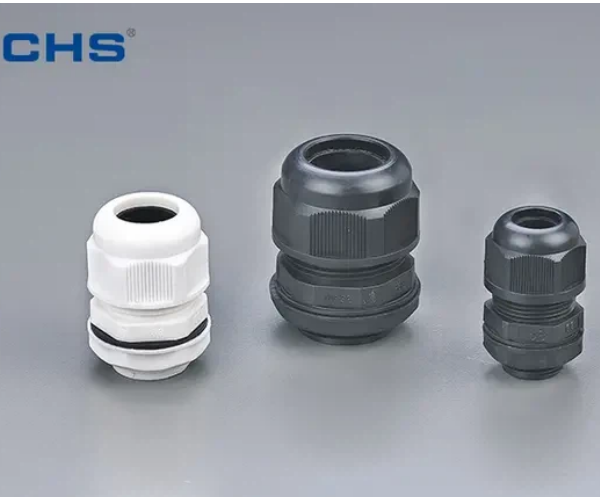

Nylon cable glands are lightweight, corrosion-resistant, and offer excellent insulating properties. They are ideal for applications where chemical resistance and insulation are paramount.
Common Materials: Nylon.
Applications: Internal wiring, control panels, electronics.
Brass and stainless steel cable glands are often selected for their high mechanical strength and corrosion resistance. These glands are commonly used in harsh environments or where there is a need for durability.
Common Materials: Brass, stainless steel.
Applications: Marine environments, chemical processing, high-temperature industrial environments.
In electrical control panels and junction boxes, cable glands ensure that cables are securely fastened and sealed. By providing a robust seal, they prevent external contaminants from entering the enclosure, which could damage electrical components or disrupt system performance.
Industrial machinery often operates in harsh environments where vibration, dust, moisture, and high temperatures are present. Cable glands protect cables from these factors, ensuring that connections are secure and preventing damage to the machinery’s electrical components.
In the telecommunications sector, cable glands are used to seal and protect the cables that run between communication systems. These glands ensure that sensitive data and power cables remain free from moisture and dust, ensuring optimal performance.
In marine applications, cable glands are crucial for providing protection against saltwater corrosion and high humidity. They ensure that cables remain intact and functional even in challenging conditions.
Selecting the right cable gland is essential for ensuring a secure and long-lasting connection. The correct choice depends on several factors, including:
Choose a cable gland that matches the size and type of the cable you are working with. It should provide a tight fit to prevent movement and ensure proper sealing.
The material of the gland must be chosen based on the environmental conditions where the gland will be used. For example, brass and stainless steel are suitable for harsh environments, while nylon is ideal for internal use.
Ensure the cable gland provides the correct level of protection (e.g., IP66, IP68) based on the specific environmental conditions.
Consider factors such as temperature, moisture, and chemical exposure. Choose a gland designed to withstand these conditions.
Proper maintenance of cable glands is necessary to ensure their longevity and continued performance. Here are some tips for maintaining cable glands:
Periodically check the condition of the cable gland to identify any signs of wear, corrosion, or loosening.
Over time, cable glands may loosen due to vibrations or other mechanical factors. Re-tightening the gland ensures it continues to provide a secure seal.
If the cable gland is damaged or no longer provides a proper seal, replace it immediately to prevent potential failures.
In conclusion, a cable gland is a crucial element in any electrical system, ensuring secure cable connections and providing protection from environmental elements such as moisture, dust, and chemicals. By selecting the right type of cable gland, ensuring proper installation, and conducting regular maintenance, you can maintain the safety, reliability, and efficiency of your electrical systems.
At Changhong Plastics Group Imperial Plastics, we specialize in providing high-quality cable glands designed to meet the demands of various industries. Our products offer superior protection and durability, ensuring your cables remain secure and function effectively, even in challenging environments. If you're looking for reliable and durable cable glands for your projects, we invite you to reach out to us for more information. We are here to assist you with selecting the best solutions to meet your needs. Feel free to contact us today to learn more about our products and services.
A cable gland provides mechanical support and a sealing function for cables entering electrical enclosures, ensuring protection against environmental elements like moisture, dust, and chemicals.
Choose a cable gland that matches the cable’s size, type, and environmental conditions. Ensure the gland provides adequate sealing and strain relief for the specific application.
Yes, many cable glands are designed for outdoor environments and provide protection against moisture, dust, and extreme weather conditions.
Not all cable glands provide the same level of sealing. Be sure to select a gland with the appropriate Ingress Protection (IP) rating based on the specific environmental factors.
